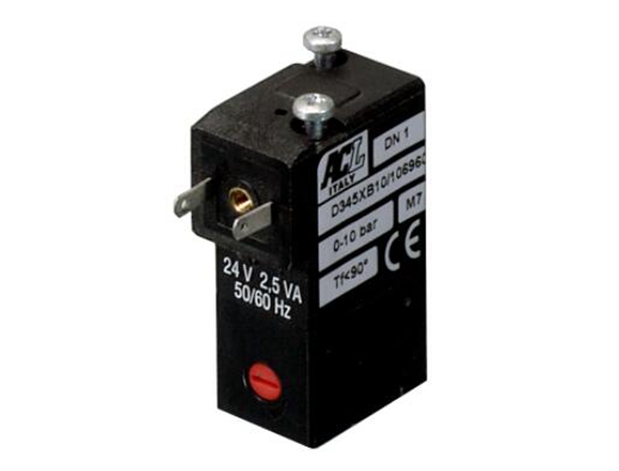

ACL 2位3通微型閥 346
詳細介紹
ACL 2位3通微型閥 346
電磁閥3路
直接作用提升閥型
構造
本體縮醛共聚物
內部零件縮醛共聚物-不銹鋼
密封材料NBR
功能
固定方式: M3螺釘
最大扭矩0.5牛米
通用安裝位置
流體溫度:最高+50°C
環境溫度:-15°C+50°C
流體:空氣、中性氣體
響應時間: 10-15ms
手動超控:封閉雙穩態功能
電氣操作特性
占空比: ED100%
絕緣等級:F(+155*C)
電壓公差: +10%
防護等級:電纜IP65
快接IP0O ,帶連接器
安裝IP65
電氣連接:電纜( L=300mm )
AMP 2.8x0.5
DIN 43650C
DESCRIPTION
Solenoid valve 3 way
direct acting poppet type
CONSTRUCTION
Body Acetal copolymer
Internal parts Acetal copolymer - Stainless steel
Seal material NBR
FEATURES
Fixing method: M3 screws
max torque 0,5Nm
Universal mounting position
Fluid temperature: +50°C max
Ambient temperature: -15°C +50°C
Fluid: Air, neutral gases
Response time: 10- 15ms
Manual override: Enclosed bi-stable function
EL ECTRICAL OPERATING FEATURES
Duty cycle: ED100%
Insulation class: F (+155°C)
Voltage tolerance: +10%
Protection class: Cables IP65
Fast-on IP0O, with connector
fited IP65
Electrical connection: Cables (L =300mm)
AMP 2.8x0.5
DIN 43650C
電磁閥3路
直接作用提升閥型
構造
本體縮醛共聚物
內部零件縮醛共聚物-不銹鋼
密封材料NBR
功能
固定方式: M3螺釘
最大扭矩0.5牛米
通用安裝位置
流體溫度:最高+50°C
環境溫度:-15°C+50°C
流體:空氣、中性氣體
響應時間: 10-15ms
手動超控:封閉雙穩態功能
電氣操作特性
占空比: ED100%
絕緣等級:F(+155*C)
電壓公差: +10%
防護等級:電纜IP65
快接IP0O ,帶連接器
安裝IP65
電氣連接:電纜( L=300mm )
AMP 2.8x0.5
DIN 43650C
DESCRIPTION
Solenoid valve 3 way
direct acting poppet type
CONSTRUCTION
Body Acetal copolymer
Internal parts Acetal copolymer - Stainless steel
Seal material NBR
FEATURES
Fixing method: M3 screws
max torque 0,5Nm
Universal mounting position
Fluid temperature: +50°C max
Ambient temperature: -15°C +50°C
Fluid: Air, neutral gases
Response time: 10- 15ms
Manual override: Enclosed bi-stable function
EL ECTRICAL OPERATING FEATURES
Duty cycle: ED100%
Insulation class: F (+155°C)
Voltage tolerance: +10%
Protection class: Cables IP65
Fast-on IP0O, with connector
fited IP65
Electrical connection: Cables (L =300mm)
AMP 2.8x0.5
DIN 43650C

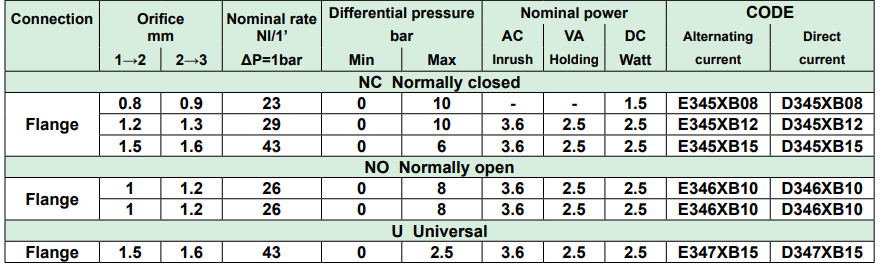

| 3/2 Micro NO | ||||||||||||||||
| TYPE | PORT SIZE | ORIFICE | NOMINAL RATE | DIFFERENTIAL PRESSURE | NOMINAL POWER | COIL | SEAL | TEMPERATURE RANGE | ||||||||
| mm | NI/1 Pa 6bar ΔP=1bar | MIN | MAX | AC-VA | DC | AC 24V | AC 110V | AC 220V | DC 12V | DC 24V | ||||||
| 1-2 | 2-3 | INRUSH | HOLDING | W | °C | |||||||||||
 346 NO | Flange | 1 | 1.2 | 26 | 0 | 8 | 3.6 | 2.5 | 2.5 | 107030 | 107060 | 107050 | 106950 | 106960 | NBR | -10 +50 |
