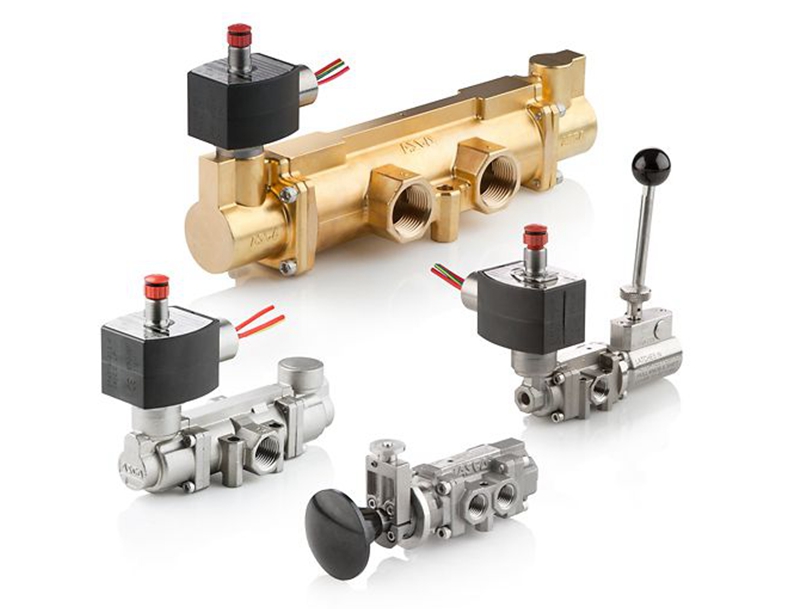

ASCO電磁閥 8362A501H1811F1

ASCO電磁閥 8362A501H1811F1

規格

閥門驅動氣動-空氣先導，氣動-閉鎖,電磁閥，電磁閥-直接作用,電磁閥-閉

鎖

閥體材料不銹鋼、黃銅

介質空氣、惰性氣體、天然氣

管道/端口尺寸1/4“; 3/8"; 1/2英寸; 3/4英寸; 1英寸

端口類型NPTF

功能3路-3/2常閉，閉心，3路-1/2常開，3路-3/2常閉

流量1.8至15.5Cv( 1.55至13.4 Kv )

電壓120 AC、12 DC、24 DC |50、60

最大差壓/最大工作壓力真空至150 PSIG

操作環境腐蝕性、危險性、室外

標準/法規I類Div 1、4X型、6型、6P型、UL

ASCO 362系列，也稱為8362，3通2位滑閥，設計用于上游、中游和下游石

油和天然氣市場的閥門先導。該閥[ ]采用ASCO久經考驗的電磁閥技術，在

關鍵任務應用中具有無與倫比的可靠性。362系列是一種適用于單作用過程閥

應用的三通閥。它有1/4英寸到1英寸的黃銅和316L不銹鋼結構，可在惡劣環

境中耐腐蝕。

Specifications

Valve ActuationPneumatic - Air Pilot, Pneumatic - Latching, Solenoid, Solenoid - Direct Acting, Solenoid - Latching

Body MaterialStainless Steel, Brass

MediaAir, Inert Gas, Natural Gas

Pipe / Port Size1/4 "; 3/8 "; 1/2 "; 3/4 "; 1 "

Port TypeNPTF

Function3 way - 3/2 Normally Closed, Closed Center, 3 way - 3/2 Normally Open, 3 way - 3/2 Normally Closed

FlowFrom 1.8 to 15.5 Cv (1.55 to 13.4 Kv)

Voltage120 AC, 12 DC, 24 DC | 50, 60

Max Differential / Max Operating PressureVacuum to 150 PSIG

Operating EnvironmentCorrosive, Hazardous, Outdoor

Standards / RegulationsClass I Div 1, Type 4X, Type 6, Type 6P, UL

yunlian inquiry and quotation [email protected]

The ASCO Series 362, also known as 8362, 3-way 2-position spool valves are designed for valve piloting in the upstream, midstream, and downstream oil and gas markets. The valves incorporate ASCO′s proven solenoid technology for unequaled reliability in mission-critical applications. The Series 362 is a three-way valve made for single-acting process valve applications. It is available in 1/4-inch through 1-inch, brass and 316L stainless steel constructions for corrosion resistance in harsh environments.
