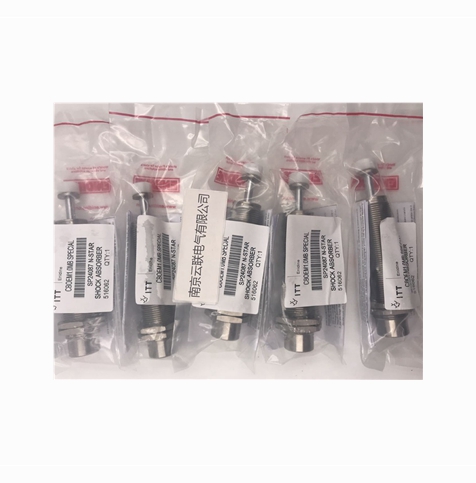

Enidine（安力定）緩沖器?OEM1.0MFB

Enidine（安力定）緩沖器OEM1.0MFB

Enidine（安力定）OEM系列可調緩沖器是工業用標準型。針對各種不同的輸入變量（重量、沖擊速度、驅動力等）可提供解決方案：通過簡單的旋轉調節旋鈕改變阻尼力的大小使其適應各種情況。該系列緩沖器種類豐富，有廣泛的能量吸收能力、大小尺寸、安裝類型及其他可選附件。

技術參數范圍

外缸徑螺紋：M 10X1.0－M 115X2
單次最大吸收能量：5.5J－19200J
沖擊速度：0.08m/s－4.5m/s
緩沖行程：7.0mm－250.0mm
LROEM低速可調系列產品可以控制速度低至0.08m/s，而驅動力高達17790N。
性能及優點：
1.可調型設計，可以根據阻尼力大小，并將值鎖定。
2.內孔設計，可以在有效的阻尼系數下，減速性能良好，取得在減速器領域中小的反彈力效果。
3.外螺紋缸體，增大散熱面積，安裝更加靈活
4.專用密封與特種油液的巧妙結合，可以提高標準的工作溫度范圍：從（-10°C~80°C）擴大到（-30°C~100°C）.
5.各種精加工的表面，保持了原有材質的外觀，提供長久的抗腐蝕保護能力。
6.可調參數，使得ENIDINE（安力定）使用范圍更廣，從低速型到高性能產品。
7.ISO認證標準，產品運行可靠，使用壽命長。.
8.用戶自定義的固定節流孔系列產品（CBOEM）可以滿足特殊應用需要。

inquiry [email protected]

Endine buffer OEM1.0MFB

Enidine OEM series adjustable buffer is industrial standard type. Solutions can be provided for various input variables (weight, impact speed, driving force, etc.): simply rotate the adjusting knob to change the damping force to adapt it to various situations. This series of buffers has a wide range of energy absorption capacity, size, installation type and other optional accessories.

External cylinder diameter thread: M 10X1.0 － M 115X2

Single maximum absorbed energy: 5.5J － 19200J

Impact speed: 0.08m/s-4.5m/s

Buffer stroke: 7.0mm-250.0mm

LROEM low-speed adjustable series products can control the speed as low as 0.08m/s and the driving force as high as 17790N.

Performance and advantages:

1. Adjustable design, the value can be locked according to the damping force.

2. The inner hole design can achieve good deceleration performance under effective damping coefficient, and achieve small rebound effect in the reducer field.

3. The external thread cylinder block increases the heat dissipation area and makes the installation more flexible

4. The ingenious combination of special seal and special oil can increase the standard operating temperature range from (- 10 ° C~80 ° C) to (- 30 ° C~100 ° C)

5. Various finish machined surfaces maintain the appearance of original materials and provide long-term corrosion resistance.

6. Adjustable parameters enable ENIDINE to be used in a wider range, from low-speed products to high-performance products.

7. ISO certification standard, reliable operation and long service life

8. User defined fixed orifice series products (CBOEM) can meet the needs of special applications.
