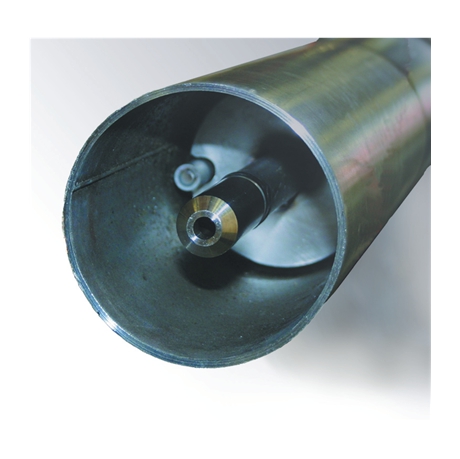

福尼Forney點火器 DURAFire

福尼Forney點火器 DURAFire 點火器是自穩定的，高度可靠的，幾乎不需要維護。霧化發生在點火器的后部，遠離尖端的熱量，因此不會結垢或需要清潔。大多數應用不需要點火器縮回，從而減少了安裝成本和日常維護。

技術指標
燃油：2號機油
容量額定值*：6-33 MBtu / hr（1.76-9.67 MW）
霧化介質：空氣
燃油壓力：點火器上60 psig（4.22 kg / cm2）
霧化空氣：點火器壓力：80 psig（5.62 kg / cm2）
流量：0.40磅空氣/ 1磅燃料
冷卻/燃燒空氣：流量：60 SCFM（點火器處）
壓降：整個設備上約3英寸（76.2毫米）的WC
連接：1?英寸NPT母頭
長度：
從24到180英寸（609到4572毫米）以2英寸（50.8毫米）的增量提供
導管外徑：4英寸（101.6毫米）–點火器可以安裝在直徑為4英寸（101.6毫米）的設備的現有安裝管中
安裝管外徑：4.5英寸（114.3毫米）
建筑材料：導管和安裝管–碳鋼
導管的爐端– 304不銹鋼
油嘴組件– 304不銹鋼
根據客戶要求的回縮組件
油嘴組件根據需要窄或廣角

NFPA 1、2或3級

The UniFlame II series microprocessor-based controller of Forney flame detection probe is used in combination with solid-state infrared (IR) and ultraviolet (UV) sensors and dual battery technology to achieve flame detection and recognition.

Products and accessories:

UniFlame II ? Part # 401116-01

UniFlame II CEX ? Part # 401117-01

UniFlame II Wireless CEX ? Part # 401118-01

UniFlame II without connector (internal junction box), part # 401116-11

UniFlame II (1-12 pin quick disconnect connector) for UniFlame I modification Part # 401116-10

FEX software part No. 401116-04

Rotatable Mounting Part # 91016-63

Mounting flange 1 "NPT part # 400487-01 1" BSP part # 400487-06

Cable 8-core quick connection part # 401119 xx Bulk cable part # 401119-00

Cable 12 core quick connect part # 401120 xx Bulk cable part # 401120-00

Operator interface: alphanumeric display with five buttons (part number 401116-03) or

Infrared transmitter (part number 401,118-03) for use with hand-held communication tool (part number 118,118-04).

UniFlame I to UniFlame II conversion box part number 92527-03

Harness part number 92527-04

UniFlame II cooling chamber standard version part # 92527-01 CEX version part # 92527-02

Mechanical specifications:

Shell material: cast aluminum, gray polyester powder coating

Shell weight: 5.9 lbs (2.69 kg), 7.1 lbs (3.22 kg) CEX model, additional flange

Environment: NEMA 4X, IP66

Area classification: Standard: Class I Div 2, Groups A, B, C, D,

Div 2, Group F&G, Class IICEX Version: Ex d IIC T6

Installation: One of two threaded mounting flanges is required, order separately

– 1-inch NPT female pipe mount with 3/8-inch NPT internal cooling air connection.

– 1-inch BSP female pipe mount with 3/8-inch BSP internal cooling air connection.

Both flanges contain an integral thermal insulation internal thread insert (thermal insulation joint is not required).

Weight of mounting flange: 0.62 lb (0.28 kg)
