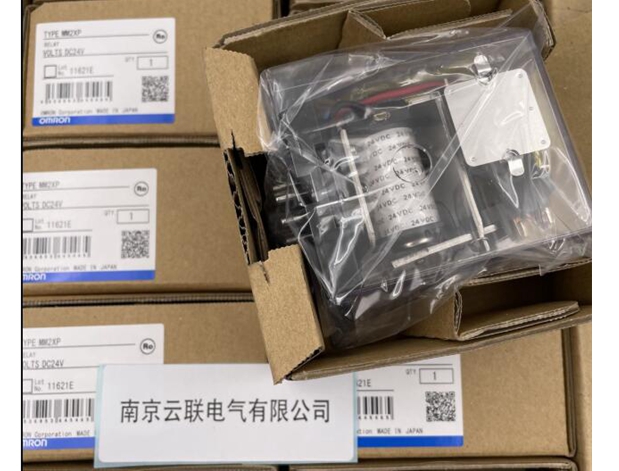

OMRON 歐姆龍繼電器 MM2XP DC24

品牌:歐姆龍

產品名稱:功率繼電器

型號: MM2XP

分類:直流負載開關型。

構造:帶外殼型,插座端子。

極數: 2極。

具有穩定的接觸可靠性和高度耐用性的功率繼電器。

安裝、配線方便,操作簡單。

接點結構類型豐富,并且可根據直流負載用、外露型和用途選擇。

具有機械壽命500萬次、電氣壽命(額定負載時) 50萬次的高耐久性能。

另備有二極管內置型以及符合電力用輔助繼電器(JEC-174D)標準的型號。

Product characteristics

Product feature 1: Coil rated specification: DC24V 87mA

No action indicator light, no coil surge absorption function

Contact composition 2c, contact structure single contact, contact

material base metal Ag, surface treatment without treatment,

contact rated load DC110V 7A (resistance load), DC110V 6A

(inductive load (LR = 7ms), maximum switching currentAC: 7.5A,

DC: 7.5A, terminal structure plug-in terminal

Protective structure: locking type (with casing)

Terminal structures: plug-in terminals

Mass: approximately 225g

Product feature 2: Coil rated specification: DC24V 87mA

Coil resistance: 275 Q

Operating voltage: below 70%

Reset voltage: above 10%

Maximum allowable voltage: 110% of rated voltage

Power consumption: below 2.1W

Contact rated load: DC110V 7A (resistive load)

DC11 0V 6A (inductive load (I /R=7ms))
