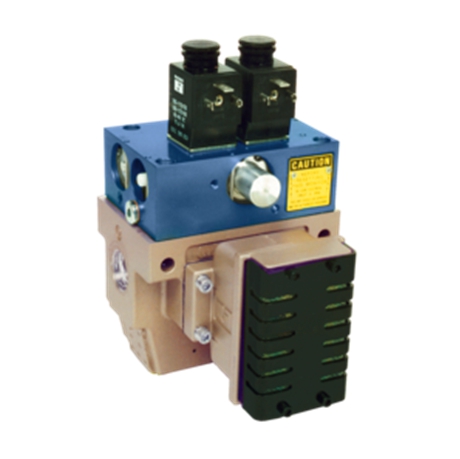

ROSS控制雙聯閥D3573D4216Z

ROSS控制雙聯閥D3573D4216Z
帶氣動L-G監控器的雙閥，端口3/8至3/4

1. 內部監控–無需額外的監控電路
2. 檢測到故障時自動鎖定/禁止
3. 故障檢測時默認為斷電位置
4. 專用復位功能
5. 移除電動或氣動能源后，不會發生意外的自動重置
6. 內置無堵塞消音器

端口尺寸（英寸）1/2“
端口螺紋BSPP
電壓120 VAC
（進出）3
重置類型空中信號
狀態指示燈連接氣動端口
端口尺寸（輸出）1/2“
消音器內置端口尺寸（排氣）
（排氣）8
南直列安裝類型
京進口側左側
云狀態指示燈端口可用
聯監視器類型氣動
技覆寫無覆寫
術輸入到主電磁雙
電磁連接DIN
重量：8.3磅（3.76千克）

庫存 常用型號 查詢

ROSS control duplex valve D3573D4216Z

Dual valve with pneumatic L-G monitor, ports 3/8 to 3/4

Internal monitoring – no additional monitoring circuit required

Automatic locking/disabling when fault is detected

Fault detection defaults to the power-off position

Special reset function

After removing electric or pneumatic energy, there will be no accidental automatic reset

Built-in non-blocking silencer

Port size (inch) 1/2“

Port thread BSPP

Voltage 120 VAC

(In and out) 3

Reset type air signal

Status indicator connected to pneumatic port

Port size (output) 1/2“

Muffler built-in port size (exhaust)

(Exhaust) 8

South in-line installation type

Left side of Beijing entrance

Cloud status indicator port available

Joint monitor type pneumatic

Technical override No override

Technical input to main electromagnetic double

Electromagnetic connection DIN

Weight: 8.3 lbs (3.76 kg)
