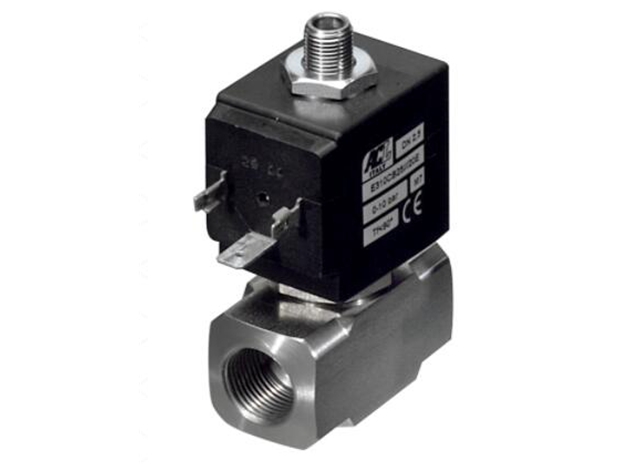

ACL 2位3通直動式閥Direct Acting 370

ACL 2位3通直動式閥Direct Acting 370

型號: 370

說明

電磁閥3通不銹鋼AISI 316

直接作用提升閥型

構(gòu)造

閥體AISI 316

電樞管AISI 316

柱塞和芯AISI 430FR

遮光環(huán)銀色

彈簧AISI 316

密封材料NBR-FPM-EPDM-FFKM ( Kalrez )

功能

最大允許壓力PS 80barJ

最大流體粘度25cSt ( mm2/s )

環(huán)境溫度:根據(jù)線圈，從-10°C到+80°C

通用安裝位置

TYPE: 370

DESCRIPTION

Solenoid valve 3 way in stainless steel AISI 316

direct acting poppet type

CONSTRUCTION

Body AISI 316

Armature tube AISI 316

Plunger and core AISI 430FR

Shading ring Silver

Spring AISI 316

Seal material NBR - FPM- EPDM- FFKM (Kalrez)

FEATURES

Maximum allowable pressure PS 80barD

Maximum fluid viscosity 25cSt (mm2/s)

Ambient temperature: from -10°C to +80°C according to the coil

Universal mounting position

3/2 Direct Acting NO

TYPE

PORT SIZE

ORIFICE

Kv

DIFFERENTIAL PRESSURE ΔP bar

NOMINAL POWER

COIL

SEAL

TEMPERATURE RANGE

mm

m3/h

MIN

MAX

AC-VA

DC

width

TYPE

1-2

2-3

AC

DC

INRUSH

HOLDING

W

°C

370 NO

1/4

2.4

2.5

0.16

0

9

9

20

15

10

30

2

NBR FFKM EPDM FPM

-10 +90 -10 +180 -10 +140 -10 +140
