說明

電磁閥3通直接作用提升閥類型。

平衡密封和特殊結構允許大流量。

電磁閥可以用作常閉式,

常開、混合或轉向。

應要求配備位置檢測器(帶led )。

構造

車身陽極氧化鋁( 320321322系列)

AISI 303 ( 323324325系列)

電樞管AISI 303

柱塞和芯AISI 430FR

彈簧AISI 302

密封材料FPM

功能

最大允許壓力PS 50bar

最大流體粘度25cSt ( mm2/s )

環境溫度:根據線圈，從-10°C到+80°C

通用安裝位置

選項

帶2 mt預接線連接電纜的位置檢測器2線(選項/P2 )

帶2 mt預接線連接電纜的位置檢測器3線(選項/P3 )

帶3針M8接頭的位置檢測器(選件/PC )

DESCRIPTION

>

Solenoid valve 3 way direct acting poppet type.

The balanced seal and the special construction allows a big

flow.

The solenoid valve can be used as normally closed,

normally open, mixing or diverting.

On request with position detector (with led).

CONSTRUCTION

Body Anodized aluminium (series 320,321,322)

AISI 303 (series 323,324,325)

Armature tube AISI 303

Plunger and core AISI 430FR

Springs AISI 302

Seal material FPM

FEATURES

Maximum allowable pressure PS 50bar

Maximum fluid viscosity 25cSt (mm2/s)

Ambient temperature: from -10°C to +80°C according to the coil

Universal mounting position

OPTIONS

Position detector with 2 mt prewired connection cable 2-wires

(option /P2)

Position detector with 2 mt prewired connection cable 3-wires

(option /P3)

Position detector with 3-pin M8 connector to be wired (option

3/2 Direct Acting NO

TYPE

PORT SIZE

ORIFICE

Kv

DIFFERENTIAL PRESSURE ΔP bar

NOMINAL POWER

COIL

SEAL

TEMPERATURE RANGE

mm

m3/h

MIN

MAX

AC-VA

DC

width

TYPE

1-2

2-3

AC

DC

INRUSH

HOLDING

W

°C

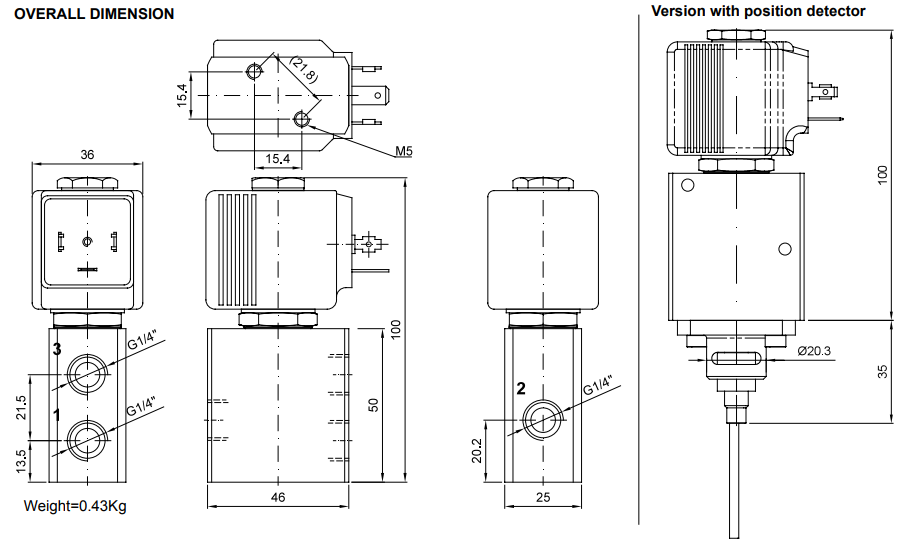

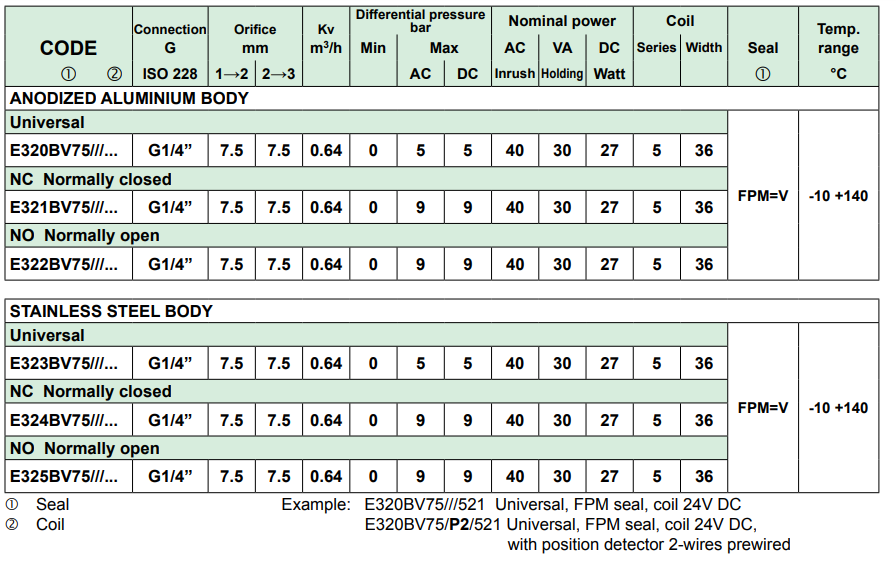

322-325 NO - Series 320

G 1/4

7.5

7.5

0.64

0

9

9

40

30

27

36

5

FPM

-10 +140
